With more than 30 years of experience in the hydroelectric sector, where sealing is a major challenge, PXL SEALS has developed recognized expertise in the design, manufacture, and installation of seals that meet a wide range of operating conditions.

Among these, rotary seals occupy an important place.

Whether they are alternating or continuous rotary seals, operating at slow or fast speeds, each of these sealing systems requires a precise analysis in order to define the most suitable solution.

For many years, this expertise has been put at the service of renowned manufacturers of bearings and slewing rings intended for numerous industrial sectors.

1. Presentation of the Jumbo solution for large bearings and slewing rings

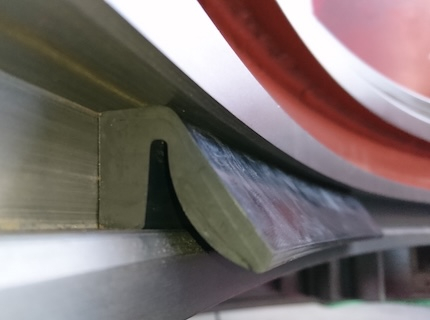

The PEROBAT JUMBO seals for slewing rings or large bearings are designed to operate on tracks with slow rotating or oscillating movements and must be able to accommodate eccentricity or cross-section variations, which are often significant, linked to the movement of parts relative to each other.

In terms of sealing, these joints are intended to operate at low pressure or even in the absence of pressure.

Why choose our solutions ?

1. Seals for energy: seals for offshore platforms, MRE (Marine Renewable Energy), wind energy...


2. Seals for civil engineering and construction: seals for bearings, tunnel boring machines (TBM), lifting equipment, cranes, excavators...


3. Seals for the naval sector


4. Seals for industry: seals for the automotive, food processing, chemical, and machine tool industries.

Examples of applications for the different markets

1. Sealing for Energy

Beyond its main market in hydroelectricity, PXL SEALS puts its know-how at the service of other energies — such as offshore, MRE (Marine Renewable Energies), and wind power — by developing innovative sealing solutions for their large bearings.

Find out more about seals for hydropower

- Bearing seals for offshore platforms

PXL SEALS solutions have been used for many years to seal the large bearings of offshore oil platforms: in particular, we provide seals intended for SWIVELS on FPSO vessels (Floating Production Storage and Offloading units).

Our very large diameter products without junctions guarantee perfect sealing without risk of failure at the joint over the years. Our seals offer ideal long-term use for this type of highly strategic application.

Depending on the type of bearing encountered and its operating characteristics (notably the presence of large clearances and eccentricity in use), it may be necessary to move towards different profiles.

For example, installing two Jumbo seals in series can ensure face sealing in a rotary system subject to sagging over time, requiring the presence of significant extrusion clearances at the sealing level. Given these constraints, Jumbo seals are selected because of their very large deformation capacity and their ability to accept significant section variations.

In other cases, a Jumbo seal is preferred to accommodate the eccentricity of the parts relative to each other. A V-Ring positioned upstream of the Jumbo acts as a barrier to impurities, performing a wiper function.

- Bearing seals for wind energy

PXL SEALS solutions are particularly suitable for sealing large slewing ring bearings located at the top of wind turbines. Indeed, we supply monobloc seals that avoid the need for profile bonding, thereby optimizing the service life of the seals.

Here, for example, are Jumbo seals fitted in series for slewing ring bearings on wind turbines:

- Shaft seals for MRE – Marine Renewable Energies

With experience in various projects involving tidal turbines and other marine renewable energy (MRE) solutions, PXL SEALS supports turbine manufacturers in securing their technologies. We design critical sealing systems capable of braving the most hostile conditions (high pressure, saline corrosion) faced by tidal turbines and wave energy equipment.

By combining technological innovation with practical experience, PXL SEALS has established itself as an indispensable technical partner for ensuring the reliability of tomorrow’s renewable marine energy equipment.

Discover some examples of projects carried out for various tidal turbine technologies:

Jumbo seals fitted in series to ensure a watertight seal on a tidal turbine shaft

2. Seals for civil engineering and construction

PXL SEALS supports major players in public works by providing high-performance sealing systems for the most demanding environments. Our solutions equip numerous types of machinery, including tunnel boring machines (TBM), cranes, and lifting equipment.

Tunnel boring machines and equipment dedicated to the construction industry operate in particularly harsh environments. Under these conditions, ensuring the tightness of components such as slewing rings and large bearings is essential to preserve their performance and extend their lifespan.

To meet the needs of these applications, we notably offer our JUMBO seals, a solution dedicated to large dimension sealing (often exceeding 3 or 4 meters). Designed specifically for slow rotary movements and low pressure, our profiles ensure optimal protection of internal lubrication.

These seals are offered to the exact dimensions of the housings, molded as a single piece (monobloc) and therefore without the need for junctions: this guarantees perfect material homogeneity and high reliability over time.

Sealing of a tunnel boring machine bearing – 3 Jumbo seals in series

For greater rigidity and retention in the housing, PXL SEALS offers the Perobat Jumbo seal with a fabric- reinforced heel.

The textile-reinforced heel provides excellent support for the seal in its groove, preventing it from rotating due to shaft drive.

It also ensures static sealing by axial compression, remaining effective even on degraded surfaces on the outer diameter.

It is also possible to mould very large diameters (> 3–4 ml)

3. Slewing ring seals for the naval sector

Actors in the maritime sector turn to PXL SEALS for its large-dimension molded seals, made with high- quality elastomers validated by decades of experience. We design, manufacture, and install solutions for PODS, engines, shaft lines, and their peripheral equipment.

Our sealing solutions prevent any pollution of seawater and any intrusion of water into the facilities.

Visualisation of the mechanical stresses applied to a Jumbo joint under fluid pressure

Replacement of POD seals on ships and connection to MDWAY®

4. Bearing seals for industry and special parts

PXL SEALS brings its expertise to all industries looking for high-tech quality seals: in the food sector with packaging equipment (bottling plants, filling and capping machines), as well as the automotive, chemical, and machine tool industries.

To meet performance and safety requirements - rotary joints, metering units, cylinders, valves, hydraulic and pneumatic systems, shock absorbers, motors, mechanical seals… we process high-tech materials such as elastomers (NBR, FPM, EPDM, HNBR, Silicone), polyurethanes (PU), and PTFE, compliant with market certifications.

See seals for industrial applications

Bearings for bottling machinery

When it comes to sealing, the requirements for large bearings and slewing rings leave no room for improvisation.

By combining long-standing expertise in seamless, one-piece moulding with a unique ability to produce seals of any diameter, PXL SEALS has established itself as the partner of choice for strategic applications such as large bearings and slewing rings in the energy, construction and industrial sectors.

We are at your disposal to provide you with the optimal sealing solution. Contact our team to discuss your project.
